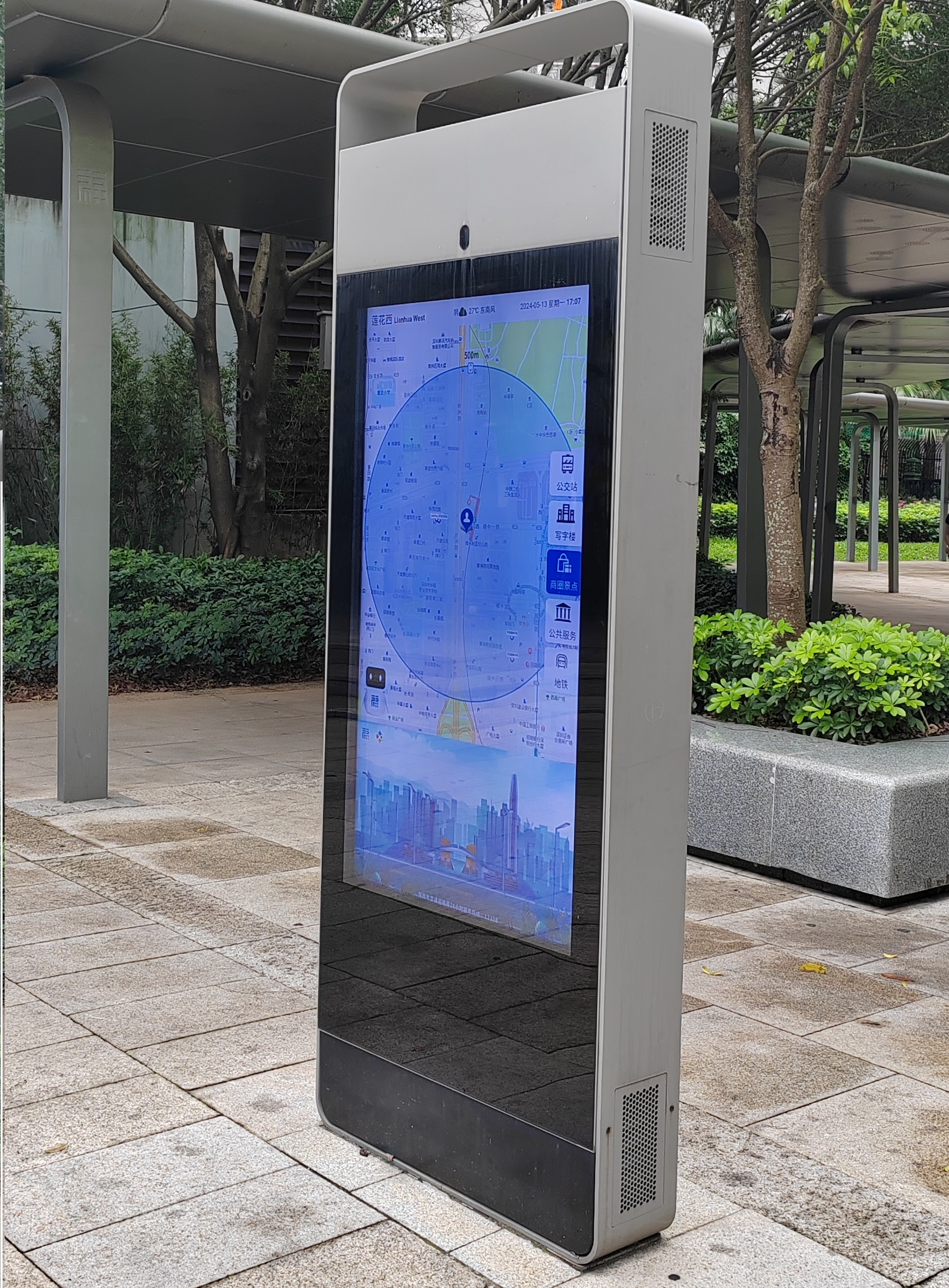

Product Details
2,500 nits ultra high Brightness, Sunlight Viewable;
Max.3,840 x 2,160 Resolution;
Aspect Ratio: 9:16 in portrait mode;
Wide Viewing Angles 178 deg. (L/R/U/D);
Waterproof IP55 rating;
Built-in high definition network player, Mini PC plus pcap touch feature is optional;
Windows 10 OS optional;
4-8mm AR toughened glass option;
Function and cabinet custom fabrication will be accepted.
Max.3,840 x 2,160 Resolution;
Aspect Ratio: 9:16 in portrait mode;
Wide Viewing Angles 178 deg. (L/R/U/D);
Waterproof IP55 rating;
Built-in high definition network player, Mini PC plus pcap touch feature is optional;
Windows 10 OS optional;
4-8mm AR toughened glass option;
Function and cabinet custom fabrication will be accepted.
| Panel *2 parameter | Size | 55 inch | ||
| Display area | 55" 680.4*1,209.6 mm ; | |||
| Brand | LG, BOE etc. (TFT-LCD+LED back lights) | |||
| Resolution | 1920*1080/3840*2160 | |||
| Brightness | 2,500cd/m, auto dimmer | |||
| Color | 16.7M | |||
| Aspect ratio | 16:9 | |||
| Response time | 6.5mS | |||
| Contrast | 4000:1 | |||
| View angle | 178°/178°(H/V) | |||
| CPU | Rockchip Cortex A17 1.8GHz | |||
| Mainboard | RK3288 | |||
| GPU | Rockchip Mali-T764 MP | |||
| System RAM | DDR3 2GB | |||
| System RoM | EMMC 16GB | |||
| Storage | TF/USB | |||
| IO connectors | INPUT: 2 x USB, 1X HDMI, TFX1,LANX1, SATAX1 OUTPUT: IR REMOTE CONTROLLERX1, AUDI 10WX2 SPEAKER | |||
| Wired network | built-in Realtek RTL8103EL | |||
| Audio | built-in HD audio audio system | |||
| Video format | WMV AVI FLV RM RMVB MPEG TS MP4 etc. | |||
| Audio format | MP3 etc. | |||
| Photo format | JPG、JPEG、BMP、PNG、GIF | |||
| OS | Android 5.1 above | |||
| OSD Language | Chinese, English, Spanish, Russian, German, French, Arabic, etc. | |||
| WIFI | YES | |||
| Feature | RTC clock, timer on/off, extend SATA hard disk | |||
| 3G/4G | Optional | |||
| Play Mode | Repeat,Timing,Insert Play and so on | |||
| Network | RJ45 Ethernet,Wifi,and other wireless device extended | |||
| IP rating | IP55 | |||
| Fans | Fans automatially work when inside temperature is up to 35℃, and stop when the temperature go down to 25℃. | |||
| Environment |
Operating Temperature : -20°C to 55°C Storage Temperature : -20°C to 60°C Operating Humidity: 10%-85% Storage Storage: 5%-90% |
|||
| System Power Supply | AC 100V~240V,50/60HZ | |||
| consumption | 55inch 700W | |||
| Power cord | Yes | |||
| TFT panel grade | Imported new A panel | |||
| Case |
SGCC + Zinc rich anticorrosive primer + powder coat finishing with life 10 years plus for outdoor use. |
|||
| Package | Inner 4CM PE foam,Middle export carton box,Outer export wooden box | |||
| spare parts | Remote controller, power cable, installation guide. | |||
| outline dimension/weight |
Product size: 1,990X125X800（mm） Packaging size: 2,150X600X1,050（mm） |
|||
| N.W/G.W | 130Kg/160KG | |||
55 inches IP55 2 sided Ultra-bright outdoor * 1 export wooden case;
Remote Controller * 1(optional);
AC Power Cord * 1;
User manua* 1.
Remote Controller * 1(optional);
AC Power Cord * 1;
User manua* 1.
