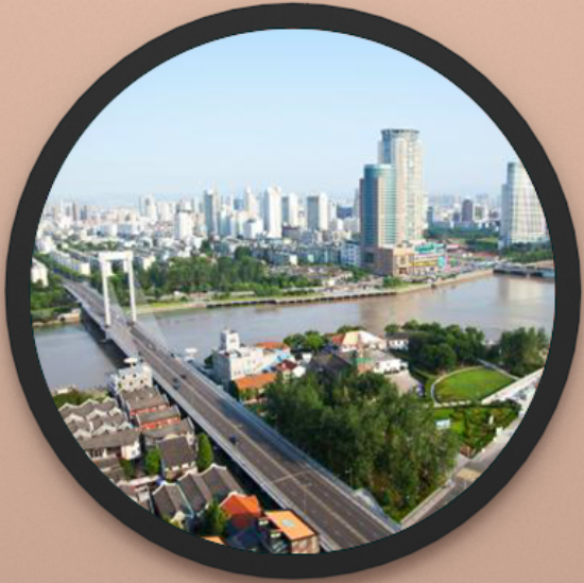

23.6 inch Round LCD digital signage

Product Details

848×848 resolution;
700 nits brightness;
Embedded base and managed via LAN, WiFI, 3G/4G connection options;
Support Android RK3568 Android 11 and Windows 10 pc optional.
Designed for 24/7 operation;
Support timer On / Off;
Customization acceptable;
Fast and safe delivery.

Panel parameter	Size	23.6 inch
	Display area	600.384mm（H）×600.384mm（V）
	Brand	LG, BOE etc. (TFT-LCD+LED back lights)
	Resolution	848×848
	Brightness	700cd/m*2
	Color	16.7M
	Aspect ratio	16:9
	Response time	6.5mS
	Contrast	4000:1
	View angle	178°/178°(H/V)
Touch		No, 10 points pcap touch or capacitive touch optional
CPU		Rockchip Cortex A17 1.8GHz
Mainboard		RK3288/3568/3576 etc.
GPU		Rockchip Mali-T764 MP
System RAM		DDR3 2GB
System RoM		EMMC 16/32GB
Storage		TF/USB
IO connectors		INPUT: 2 x USB, 1X HDMI, TFX1,LANX1, SATAX1 OUTPUT: IR REMOTE CONTROLLERX1, AUDI 8WX2 SPEAKER
Wired network		built-in Realtek RTL8103EL
Audio		built-in HD audio audio system
Video format		WMV AVI FLV RM RMVB MPEG TS MP4
Audio format		MP3
Photo format		JPG、JPEG、BMP、PNG、GIF
OS		Android 11/14
OSD Language		Chinese, English, Spanish, Russian, German, French, Arabic, etc.
WIFI		YES
Feature		RTC clock, timer on/off, extend SATA hard disk
3G/4G		Optional
Play Mode		Repeat,Timing,Insert Play and so on
Network		RJ45 Ethernet,Wifi,and other wireless device extended
Environment		Operating Temperature :0°C to 40°C Storage Temperature :-20°C to 60°C Humidity:10%-80% RH at 40°C,
System Power Supply		AC 100V~240V,50/60HZ
consumption		55W
Power cord		Yes
TFT panel grade		Imported new panel
Case		Cold rolled steel with powder coating+ toughened glass surface
Package		Inner 4CM PE foam,Middle export carton box,Outer export wooden box
spare parts		ceiling bracket, main box, cover, wireropeX2, Hanging square tube, remote controller, power cable, installation guide.
outline dimension/weight
	N.W/G.W	10Kg/12KG

23.6 inch Round LCD digital signage* 1 /crate;
Remote Controller (optional) * 1;
User manual * 1;
Warranty card * 1.
