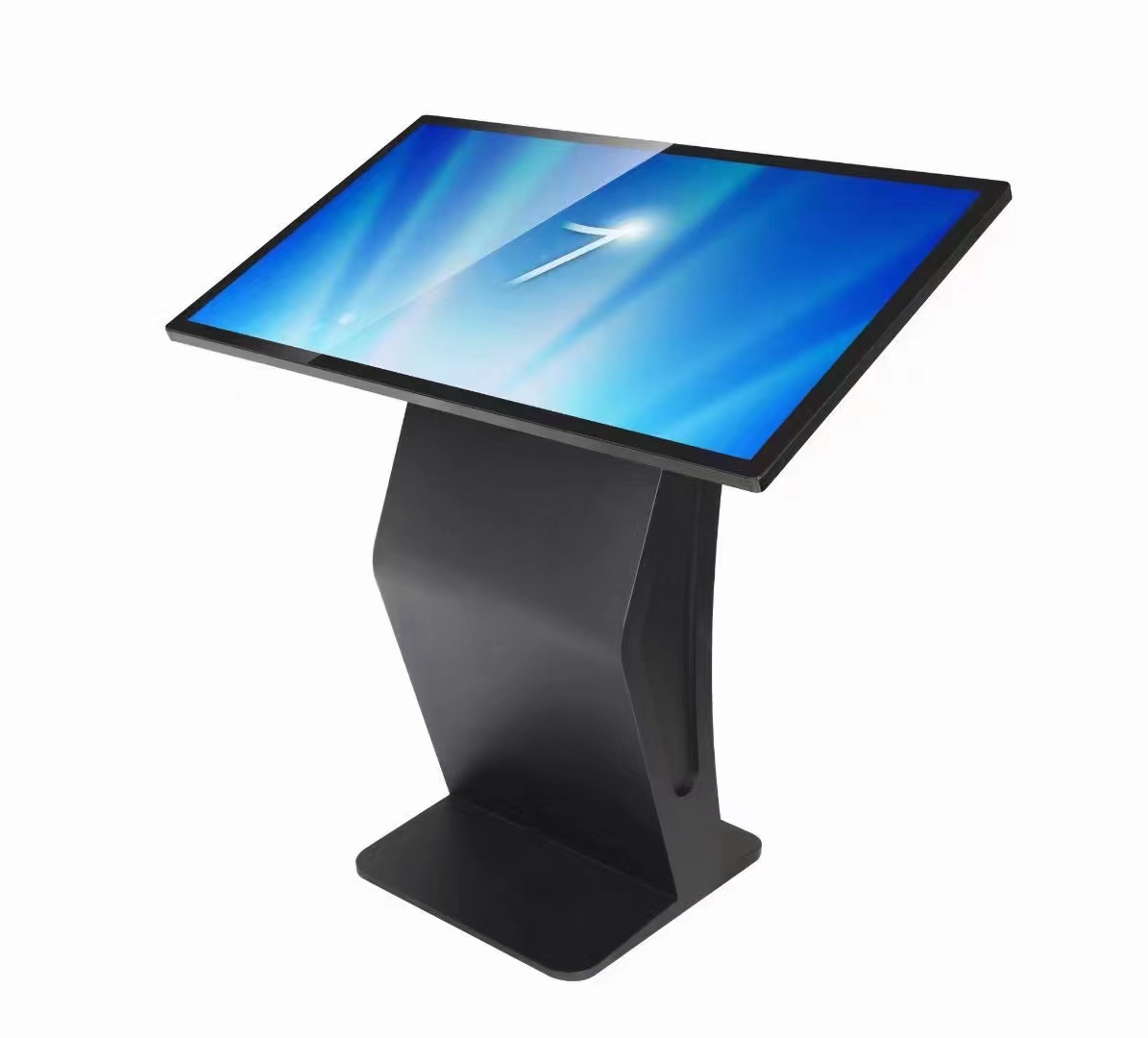

Product Details
IR touch 10-point touch is optional;
Unlimited touch/click times;
Support PC built in with I5, I3, I7 and ANDROID PC options are available;
Customization acceptable;
Available sizes 21.5", 27", 32", 43", 49", 55" and 65".
Wooden case with hinge system safe delivery.
Unlimited touch/click times;
Support PC built in with I5, I3, I7 and ANDROID PC options are available;
Customization acceptable;
Available sizes 21.5", 27", 32", 43", 49", 55" and 65".
Wooden case with hinge system safe delivery.
| Panel parameter | Size | 55 inch | ||
| Display area | 55" 680.4*1209.6mm ; | |||
| Brand | LG, BOE etc. (TFT-LCD+LED back lights) | |||
| Resolution | 3840*2160 | |||
| Brightness | 400cd/m*2 | |||
| Color | 16.7M | |||
| Aspect ratio | 16:09 | |||
| Response time | 6.5mS | |||
| Contrast | 4000:1 | |||
| View angle | 178°/178°(H/V) | |||
| Touch | 10 points PCAP touch | |||
| CPU | Rockchip Cortex A17 1.8GHz | |||
| Mainboard | RK3568 | |||
| GPU | Rockchip Mali-T764 MP | |||
| System RAM | DDR3 2GB | |||
| System RoM | EMMC 16GB | |||
| Storage | TF/USB | |||
| IO connectors | INPUT: 2 x USB, 1X HDMI, TFX1,LANX1, SATAX1 OUTPUT: IR REMOTE CONTROLLERX1, AUDI 8WX2 SPEAKER | |||
| Wired network | built-in Realtek RTL8103EL | |||
| Audio | built-in HD audio audio system | |||
| Video format | WMV AVI FLV RM RMVB MPEG TS MP4 | |||
| Audio format | MP3 | |||
| Photo format | JPG、JPEG、BMP、PNG、GIF | |||
| OS | Android 11 | |||
| OSD Language | Chinese, English, Spanish, Russian, German, French, Arabic, etc. | |||
| WIFI | YES | |||
| Feature | RTC clock, timer on/off, extend SATA hard disk | |||
| 3G/4G | Optional | |||
| Play Mode | Repeat,Timing,Insert Play and so on | |||
| Network | RJ45 Ethernet,Wifi,and other wireless device extended | |||
| Environment |
Operating Temperature :0°C to 40°C Storage Temperature :-20°C to 60°C Humidity:10%-80% RH at 40°C, |
|||
| System Power Supply | AC 100V~240V,50/60HZ | |||
| consumption | 55inch 185W ; 43inch: 155W | |||
| Power cord | Yes | |||
| TFT panel grade | Imported new panel | |||
| Case | Cold rolled steel with powder coating+ toughened glass surface | |||
| Package | Inner 4CM PE foam,Middle export carton box,Outer export wooden box | |||
| spare parts | ceiling bracket, main box, cover, wireropeX2, Hanging square tube, remote controller, power cable, installation guide. | |||
55 inches 10-point PCAP touch screen *1 export wooden case;
AC Power Cord *1;
User manua*1.
AC Power Cord *1;
User manua*1.
