25.9-64.8" Square screens available;
Android board/monitor board optional.
Power input: AC100V-240V.
|

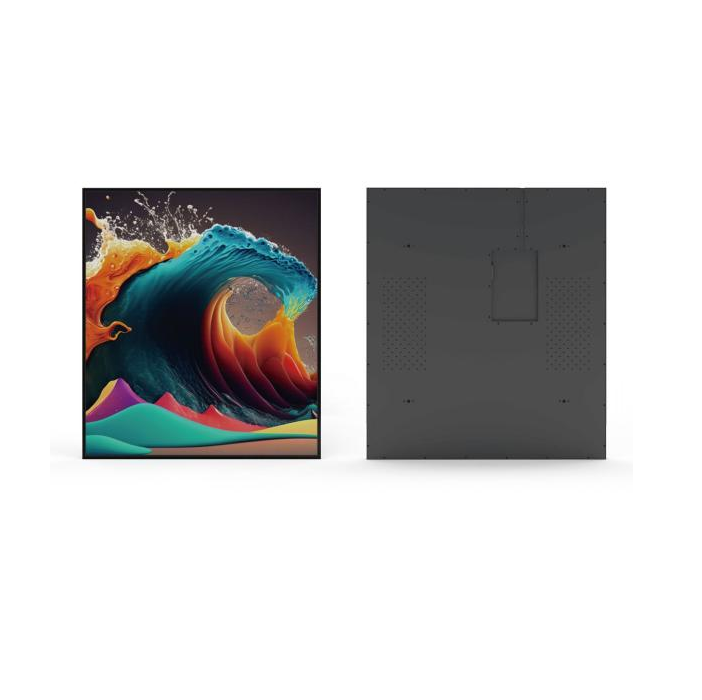

45.5" Square screen |
||
|
Specs |
Item |
45.5" LG, boe panel etc. |
|
LCD panel |
Name |
Square screen |
|
Model |
E50RS |
|
|
Display Area |
837.4 x 837.4 mm |
|
|
Display Mode |
1:1 |
|
|
LCD Type |
TFT-LCD |
|
|
Max Resolution |
1900*1900 |
|
|
Display color |
16.7M |
|
|
Brightness |
500 nits |
|
|
Contrast |
1500:1 |
|
|
View-angle(up/down/left/right) |
89°/89°/89°/89° |
|
|
Response Time |
8ms |
|
|
Field Frequency |
50/60 Hz |
|
|
OSD Language |
English |
|
|
Touch parameter |
Touch Style |
Non touch |
|
Computer configuration |
CPU |
972 |
|
RAM |
2G |
|
|
HARD DISK |
32 g |
|
|
WIFI&LAN |
YES |
|
|
OS |
Android 9.0 above |
|
|
Interfaces |
HDMI IN, USB etc. |
|
|
Network |
LAN and WIFi |
|
|
Power |
Power |
AC100V～240V ，50/60Hz |
|
The maximum power |
≦90W |
|
|
Standby power |
<1W |
|
|
Speakers |
Stereo |
|
|
Environmen |
Operating temperature |
0℃~45℃ |
|
Operation Humidity |
10~90% |
|
|
Storage temperature |
-20℃~60℃ |
|
|
Life |
50000hrs |
|
|
Other |
Frame material |
metal |
|
Installation |
Portrait/Landscape |
|
|
Range of application |
Indoor |
|
Remote Controller *1;
User manua*1;
Warranty card *1.
