Product Details
2,000 nits ultra high Brightness, Sunlight Viewable;
Max.1,080 x 1,920 Resolution;
Aspect Ratio: 9:16 in portrait mode;
Wide Viewing Angles 178 deg. (L/R/U/D);
Waterproof IP55 rating;
Built-in high definition network player, Mini PC is optional;
Original OS can be added;
Brightness 1,500-2,500 is optional;
US imported 4-8 mm AR toughened glass option;
Function and cabinet custom fabrication will be accepted;
Fan, temperature and light sensors.
Max.1,080 x 1,920 Resolution;
Aspect Ratio: 9:16 in portrait mode;
Wide Viewing Angles 178 deg. (L/R/U/D);
Waterproof IP55 rating;
Built-in high definition network player, Mini PC is optional;
Original OS can be added;
Brightness 1,500-2,500 is optional;
US imported 4-8 mm AR toughened glass option;
Function and cabinet custom fabrication will be accepted;
Fan, temperature and light sensors.
| Model | 43UDS100S |
| Screen Size | 43 inches |
| Panel | a-Si active matrix TFT-LCD |
| Frame Color | Silver/white/black/blue etc. |

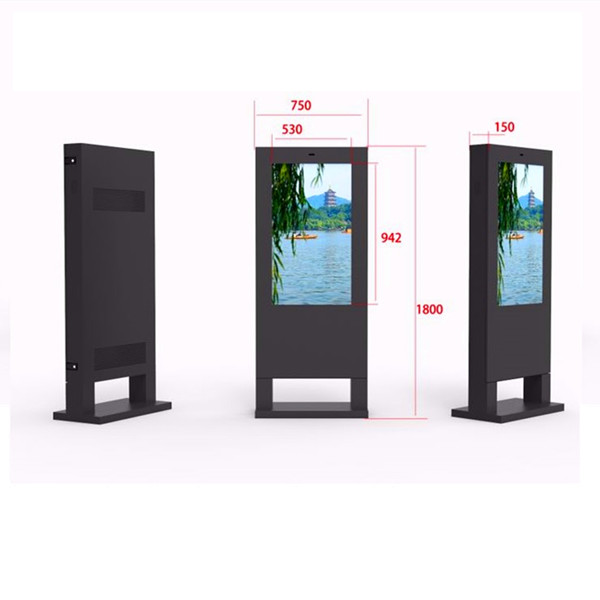

| Product Size(mm) | 750(H)x1,800(V)x150(D) |
| G.W. | 115KGs |
| Display Size(mm) | 529.42(H)x941.2(V) |
|
|
|
| Max Resolution | 1,080x1920 |
| Brightness | 2,000 / ㎡ |
| Aspect Ratio | 9:16 |
| Contrast Ratio | 2,000:1, Dynamic contrast ratio: 10,000:1 |
| Horizental Freq. | 121.8KHz ~ 140KHz |
| Vertical Freq. | 95Hz ~ 104Hz(DVB/PAL), 108Hz ~ 122Hz(NTSC) |
| Viewing Angle | 178 deg (L/R/U/D) |
| Colors | 16.7 M, 8 bits depth |
| Response Time | 15 msec/5ms typical |
| Interfaces: | VGA, AV, S-video, HDMI |
| Media Player | Media Player (Sigma 8653 chip) (option) |
| Remotor Control | Support for Full OSD Features |
| Dimming | Auto-dimming by light sensor |
| Input Power Voltage | AC 100-240V (50Hz-60Hz) |
| Power Consumption | 465W |
| PC configuration | H81 I3, 4GB DDR3,120G SSD |
| (Optional) | Media player, Android ver. 5.2/8.1 |
| Cooling |
By cooling fans |
|
|
|
| Waterproof IP55 rating | YES |
| Operating Temperature | -15-50 oC, |
| Wide temperature | -30-60 oC |
| Operating Humidity | 10%-85% |
| Storage Temperature | -30-60 oC |
| Storage Humidity | 5%-90%RH |
43 inches Ultra-slim outdoor LED display × 1/detachable corrugated box;
Remote Controller × 1;
AC Power Cord × 1;
HDMI cord × 1;
VGA Cord × 1;
User manua × 1;
Warranty card × 1.
Remote Controller × 1;
AC Power Cord × 1;
HDMI cord × 1;
VGA Cord × 1;
User manua × 1;
Warranty card × 1.
